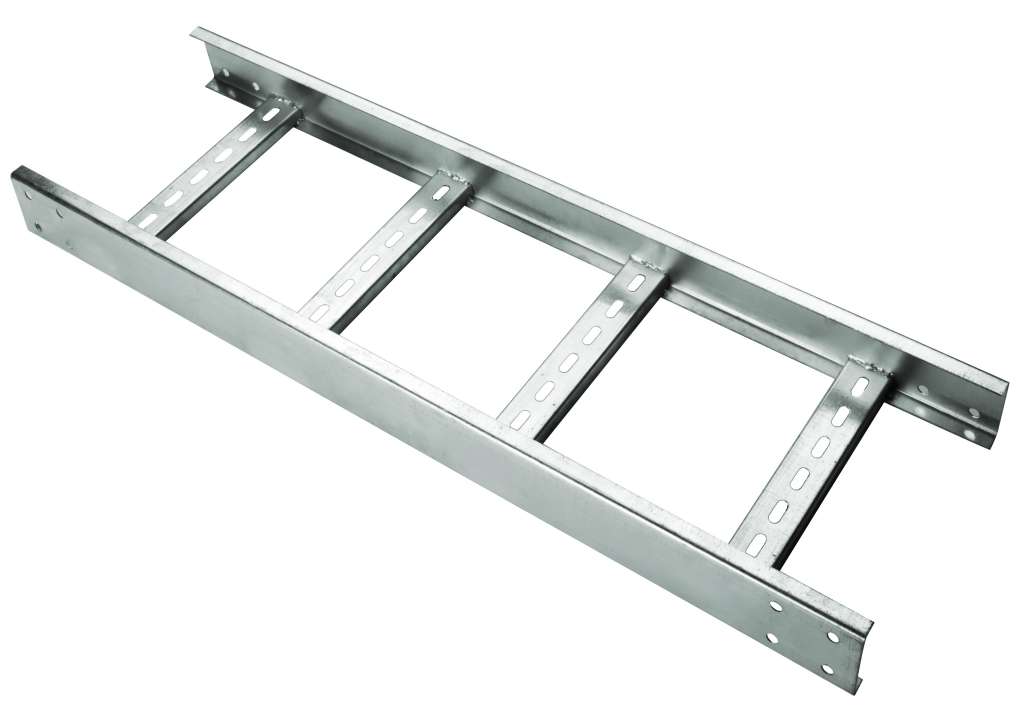

Ladder Tray

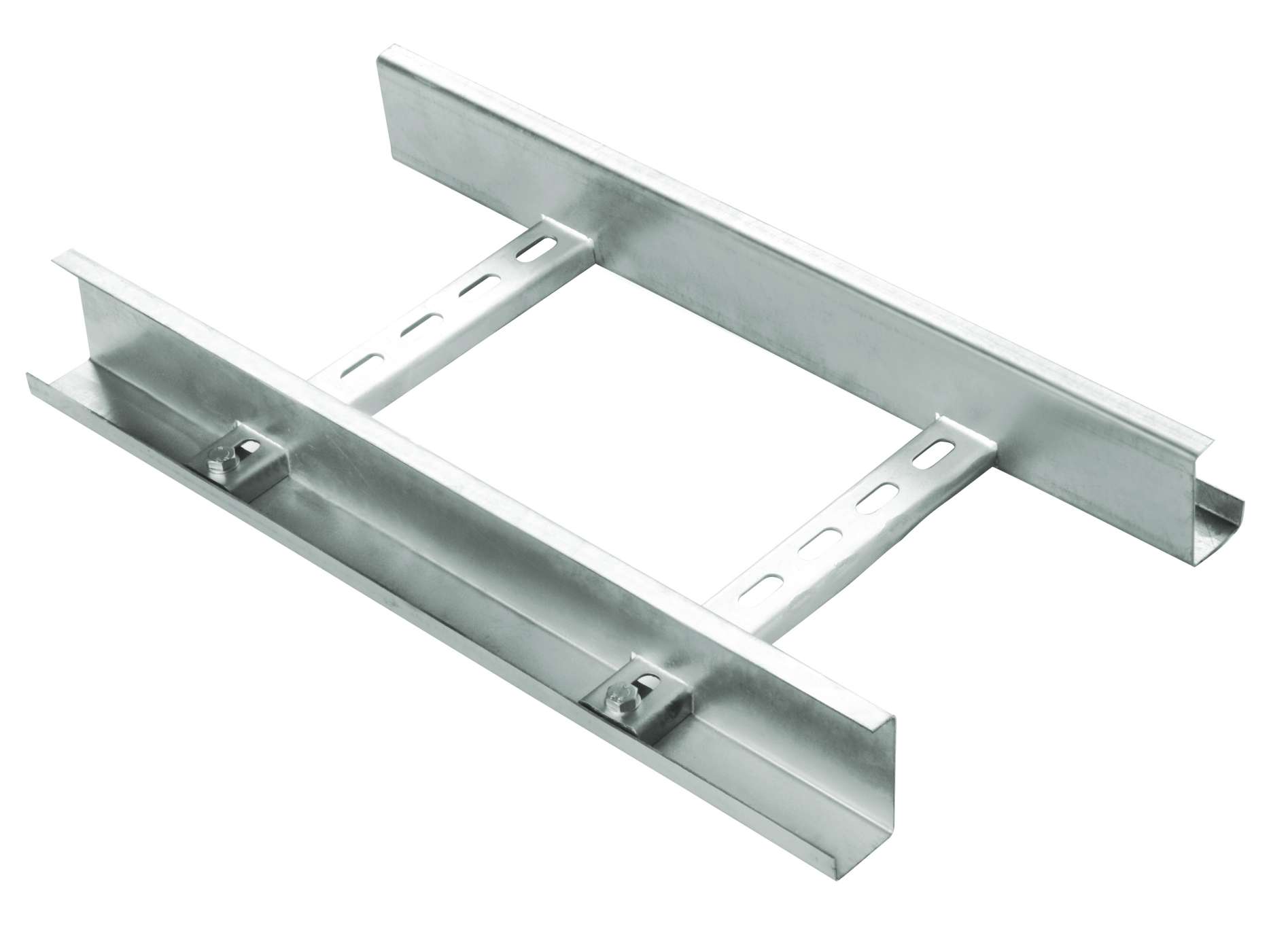

Ladder Bolted

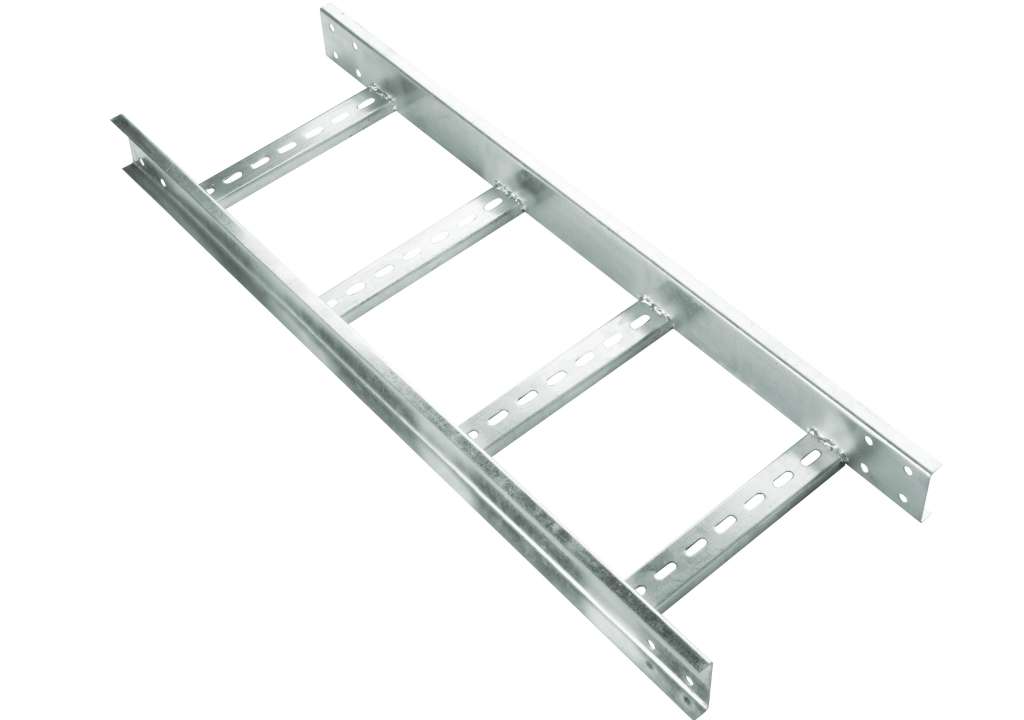

Ladder-Outward-Bend
Ladder Cable Tray
Ladder Cable Trays are engineered to support heavy-duty cable installations where strength, durability, and maximum airflow are essential. Their open ladder-type structure provides excellent ventilation and easy access for inspection and maintenance.
Widely used in power plants, industrial facilities, and infrastructure projects, ladder cable trays are ideal for carrying large and heavy cables over long spans. Manufactured using high-quality materials, they ensure superior load-bearing capacity, corrosion resistance, and long service life.
Product Specifications
| Width (W) | 50mm to 1200mm |
|---|---|
| Side Channel Height (H) | 50mm to 150mm |
| Run Width | 30mm to 50mm |
| Run C to C | 250mm to 300mm |
| Thickness (T) | 1.5mm to 3mm |
| Length (L) | 2500mm |
| MOC | GI, MS, SS, MS Powder Coated, HDGI |
All dimensions are in mm
All sizes are standardized; however, custom sizes can be manufactured as per specific requirements.
All sizes are standardized; however, custom sizes can be manufactured as per specific requirements.
Key Features
- ✔ High load-carrying capacity
- ✔ Excellent heat dissipation
- ✔ Strong side rails for rigidity
- ✔ Easy cable laying and maintenance
- ✔ Suitable for long span installations
- ✔ Corrosion-resistant finishes available
